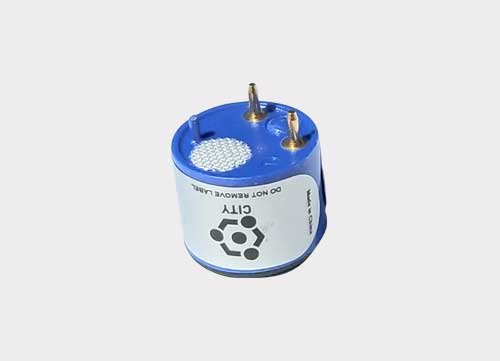

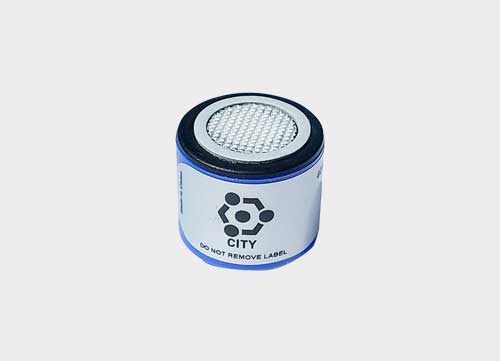

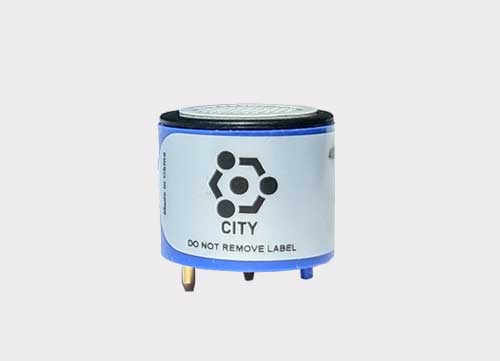

City 1-25% vol O2 氧气传感器
类 别： 其它传感器
描 述： 企鹅体育是**的以气体传感器销售与技术服务的科技型公司。 英科传感技术公司提供的传感器类型有红外气体传感器、激光甲烷气体传感器、电化学气体传感器、半导体气体传感器、催化燃烧式气体传感器、热导型气体传感器、热线型气体传感器、微量粉尘气体传感器、PID光离子型气体传感器、烟雾传感器、TVOC气体传感器、大颗粒粉尘气体传感器、传感器及其传感器模块可用于检测多达200余种气体。
24小时服务热线
13500022617
13500022617
产品详情
| MEASUREMENT | |
| Technology | Electrochemical |
| Measurement Range | 1-25% vol O2 |
| Maximum Overload | 30% vol O2 |
| Output Signal | 0.10 ± 0.02 mA in Air |
| Response Time (T90) | <15s |
| Zero Current (Offset) | <0.6% vol O2 |
| Linearity | Can be considered linear inmany cases.See Operating Principles(OP-02) for further details. |
| ELECTRICAL | |
| Recommended Load Resistor | 100 Ω |
| MECHANICAL | |
| Casing Material | ABS |
| Weight | <16 g |
| Orientation Sensitivity | <0.2% vol. 0, equivalent |
| ENVIRONMENTAL | |
| Operating Temperature Range | -20℃to +50℃(up to 3 montcontinuous across RH range) |
| Recommended Storage Temp | 0℃ to 20℃< |
| Thermal Transient(Temp. plunge +22℃ to -20℃) | <23.5% vol. O2 |
| Operating Pressure Range | Atmospheric± 20% |
| Pressure Transient(60 cm H2O step change) | <200% signal change |
| Relative Humidity Range | (at 0℃ to 20℃) |
| Continuous | 5 to 95%RH non-condensing |
| Short Term | 0 to 99%RH non-condensing |
| LIFETIME | |
| Long Term Output Drift | <2% signa lmonth |
| Typically<5% over operating life | |
| Expected Operating Life | Minimum 24 months in air |
| Storage Life | 6 months in original packaging |
| Warranty Period | 24 months from date of despatch |
