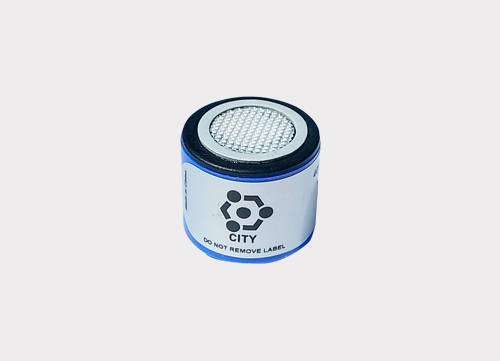

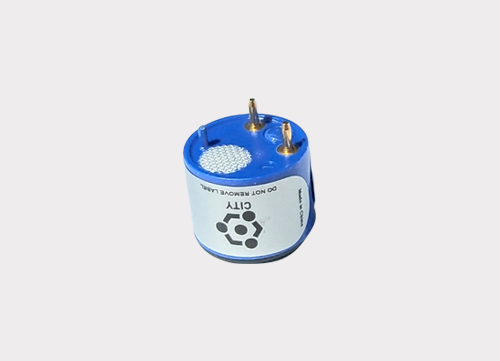

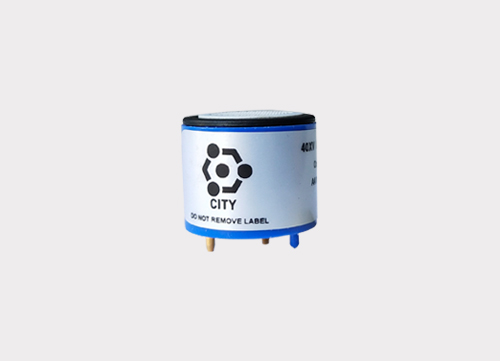

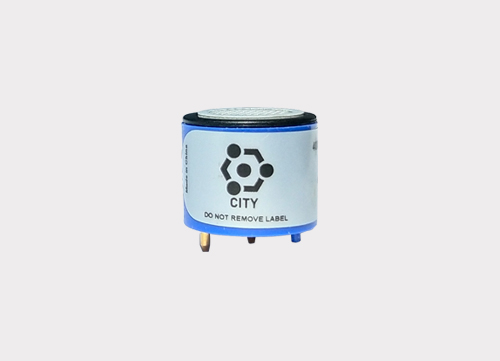

4O2-City传感器

类　别： 其它传感器

描　述： 企鹅体育是**的以气体传感器销售与技术服务的科技型公司。 英科传感技术公司提供的传感器类型有红外气体传感器、激光甲烷气体传感器、电化学气体传感器、半导体气体传感器、催化燃烧式气体传感器、热导型气体传感器、热线型气体传感器、微量粉尘气体传感器、PID光离子型气体传感器、烟雾传感器、TVOC气体传感器、大颗粒粉尘气体传感器、传感器及其传感器模块可用于检测多达200余种气体。

24小时服务热线
13500022617
在线咨询
联系我们
产品详情

Technical Specifications:


MEASUREMENT

Technology 2-electrode electrochemical
Measruement Range 0-25% vol. O 2

Maximum Overload 30% vol. O 2

Output Signal 0.10 ± 0.02 mA in Air
Response Time (T90) <10 Seconds
Baseline Offset (clean air) <0.3% vol. O 2
Maximum Zero Shift

(+20°C to +40°C)

< ±5%

Linearity Can be considered linear in many cases. See Operating Principles for further information

ELECTRICAL:

Recommended Load Resistor 100 Ω
Resolution Dependant on electronics

MECHANICAL;

Housing Material ABS
Weight 15 g (approx)
OrientationSensitivity <0.1%vol. O 2 equivalent

 ENVIRONMENTAL：

Operating Temperature Range -20°C to +50°C
Temperature Coefficient 0.2% signal / °C
Thermal Transient <23.5% vol. O 2
(Temp plunge +22°C to -20°C)

Operating Pressure Range

1 atm ± 10%

Pressure Coefficient <0.02% signal/mbar
Pressure Transient 15% to 90% RH non-condensing
(60 cm H 2 O step change <200% signal change
Operating Humidity Range:

Continuous

Intermittent

5 to 95%RH non-condensing

0 to 99%RH non-condensing

LIFETIME：


Long Term Output Drift < 5% signal / year
Recommended Storage Temp 0 - 20°C
Expected Operating Life Minimum 25 months in air
Storage Life 6 months in sealed container
Warranty Period 12 months from date of despatch
