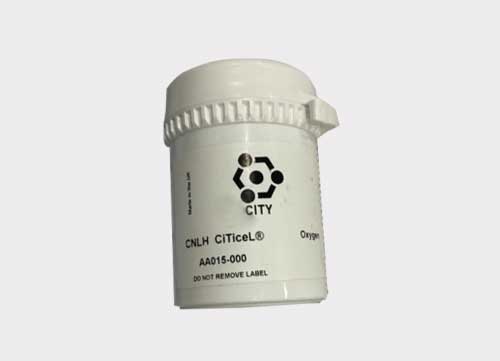

CITY微量氧气体传感器
类 别： 其它传感器
描 述： 企鹅体育是**的以气体传感器销售与技术服务的科技型公司。 英科传感技术公司提供的传感器类型有红外气体传感器、激光甲烷气体传感器、电化学气体传感器、半导体气体传感器、催化燃烧式气体传感器、热导型气体传感器、热线型气体传感器、微量粉尘气体传感器、PID光离子型气体传感器、烟雾传感器、TVOC气体传感器、大颗粒粉尘气体传感器、传感器及其传感器模块可用于检测多达200余种气体。
24小时服务热线
13500022617
13500022617
产品详情
| MEASUREMENT | |
| Operating Principle | 2-electrode electrochemical |
| Measurement Range | 0-2 ppm O2 |
| Maximum Overload | 1000 ppm o2 |
| Filter | None |
| Output Signal | 50 - 80 mV in air with a 10Ω |
| load resistor | |
| Response Time (T90) | <20 seconds at 20℃ |
| Purge Time:(Ambient air to<10 ppm) | <6 hours |
| Linearity | Linear |
| ELECTRICAL | |
| Recommended Load Resistor | 10Ω |
| Weight | 32 g |
| Housing Material | |
| Body | Nickel plated steel |
| Current Collectors | Nickel |
| Orientation Sensitivity | None |
| ENVIRONMENTAL | |
| Operating Temperature Range | -20℃ to +50℃ |
| Temperature Coefficient | 0.2% signal/℃ |
| Recommended Storage Temp | 0℃to 20℃ |
| Operating Pressure Range | Atmospheric ±10% |
| Operating Humidity Range | 0 -99%6 RH non-condensing |
| LIFETIME | |
| Long Term Output Drift | <5% signal loss/year |
| Expected Operating Life | See below |
| Storage Life | 6 months in CTL container |
| Standard Warranty | 12 months from date of despatch |
